ME 270 · Design for Manufacturability · UIUC

Injection Mold Design & Flow Simulation

Designed and analyzed a CNC aluminum mold for the injection molding process, then validated the design in simulation before generating toolpaths.

Mold Design & Machining

Designed a CNC aluminum mold, then generated G-code for a 3-axis CNC mill operation using Fusion 360's Manufacture workspace.

Flow Simulation

Used Autodesk MoldFlow Synergy to investigate ideal gate location, minimize air traps, and predict flow distance before cutting metal.

CNC aluminum injection mold CAD render
Aluminum mold design
Injection molded part render
Target part

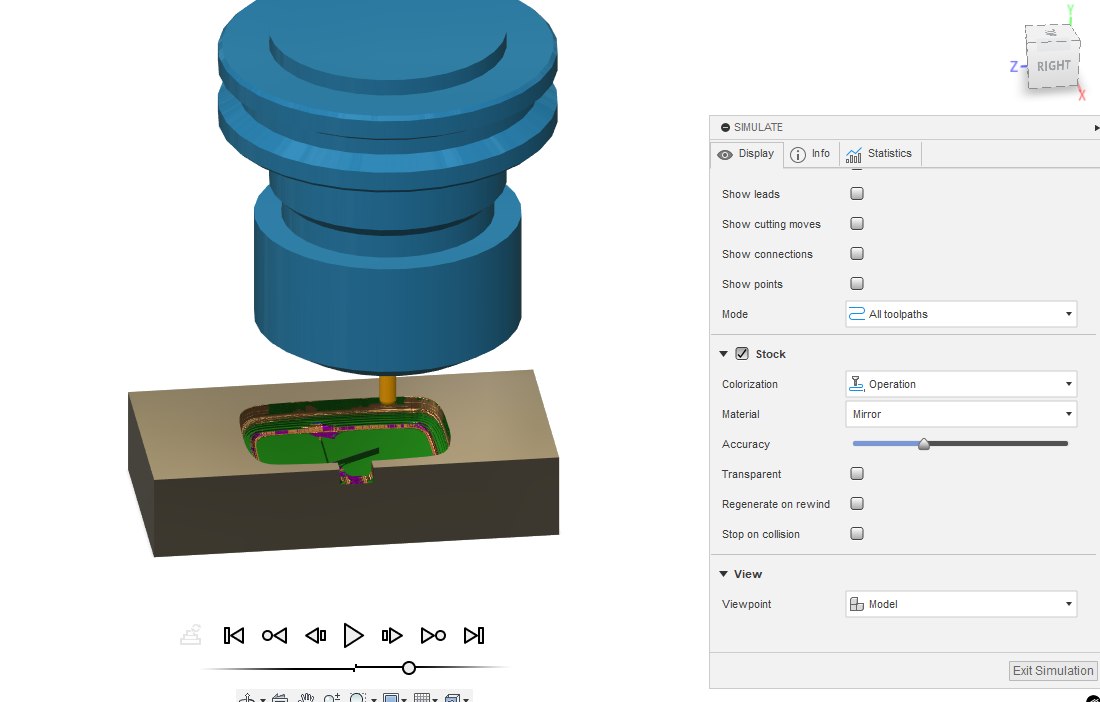

CNC toolpath simulation in Fusion 360
3-axis CNC toolpath simulation

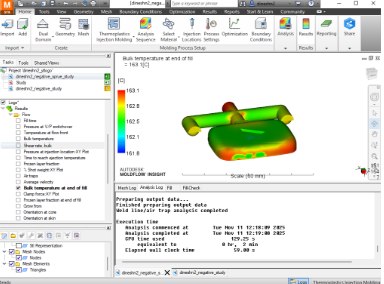

MoldFlow Synergy simulation output
MoldFlow temperature analysis

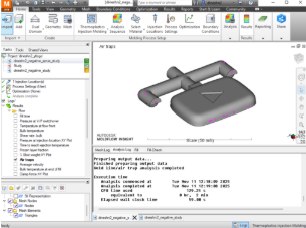

MoldFlow Synergy simulation output, alternate view
MoldFlow air-trap analysis
